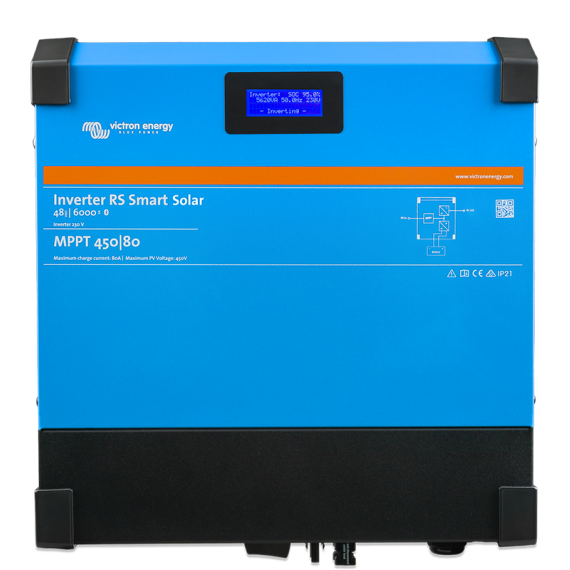

The Inverter RS Smart Solar is a combination of a powerful 48VDC, 6kVA 230VAC inverter and a high voltage, 80-450VDC, 4kW MPPT solar charger. Thanks to its modern design and high frequency technology the inverter only weighs 11kg and has an excellent efficiency, low standby power, and very quiet operation.
The inverter is equipped with a display to read out battery, inverter, and solar charger details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port for connection to a GX device for system monitoring; and VE.Direct port for connection to a GlobalLink 520.
Datasheet
Inverter RS Smart SolarDocuments
Certificate Safety EN/IEC 62109-1 – Inverter RS 48/6000 230V Smart Solar (Certificate)
Certificate Safety EN/IEC 62109-1/2 – AS/NZS – Inverter RS 48/6000 230V Smart Solar (Certificate)
Certificate Safety IEC 60335-1 – Inverter RS 48/6000 230V Smart Solar (Certificate)
Declaration of Conformity – Inverter RS 48/6000 230V Smart Solar (Certificate)
Did You Know – Reduce power consumption of an inverter in standby (Video)
ISO9001 certificate (Certificate)
Inverter RS 48/6000 230V Smart Solar (Enclosure dimension)
Inverter RS 48/6000 230V Smart Solar (3D) (Enclosure dimension)
Inverter RS 48/6000 230V Smart Solar (stp) (Enclosure dimension)
Inverter RS Smart Solar (Old installation and user manual)
Inverter RS Smart Solar (HTML5) (Manual)
