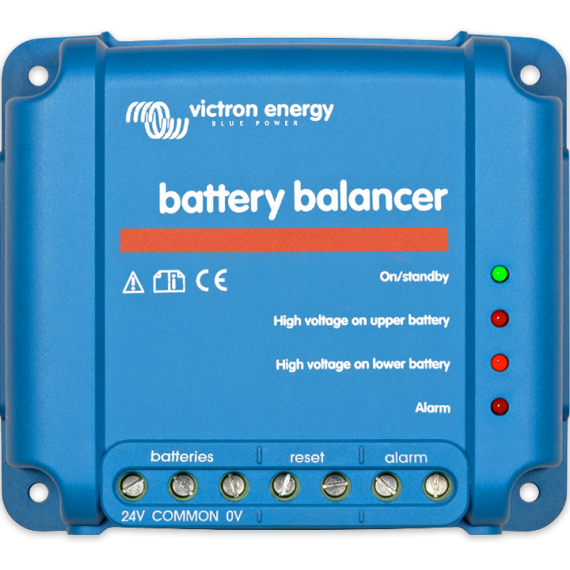

Battery Balancer

50.27

SKU: BBA000100100
Avaibility : In stock
Category:

The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries. When the charge voltage of a 24V battery system increases to more than 27V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.

If needed, several balancers can be paralleled.
A 48V battery bank can be balanced with three Battery Balancers.

The Battery Balancer equalizes the state of charge of two series connected 12V batteries, or of several parallel strings of series connected batteries. When the charge voltage of a 24V battery system increases to more than 27V, the Battery Balancer will turn on and compare the voltage over the two series connected batteries. The Battery Balancer will draw a current of up to 1A from the battery (or parallel connected batteries) with the highest voltage. The resulting charge current differential will ensure that all batteries will converge to the same state of charge.

If needed, several balancers can be paralleled.
A 48V battery bank can be balanced with three Battery Balancers.

Datasheet

Battery Balancer

Battery Balancer Demo webapp

Documents

Battery Balancer (Enclosure dimension)

Battery Balancer (3D) (Enclosure dimension)

Battery Balancer (stp) (Enclosure dimension)

Certificate Safety CSA/UL 62368-1 – Battery Balancer (Certificate)

Certificate Safety IEC 60335-1 – BatteryProtect (Certificate)

Declaration of Conformity – Battery Balancer (Certificate)

ISO9001 certificate (Certificate)

Victron Energy launches Battery Balancer (Press release)

Weight 0.408 kg
